3D V6 WLTOYS 104 X CENTRAL DIFF MJX RC CAR TRUGGY 1:10 (PREMIUM)

Description

[¯`·._.·[   V6 WLTOYS 104 X CENTRAL DIFF RC CAR TRUGGY 1:10 PREMIUM  ]·._.·´¯]



A beta prototype version of a chassis with integrated central differential,

This should further improve performance, transmission robustness, and road handling.

There is



2 types of Motor/Diff Mount (and therefore chassis) :

– WLTOYS 104 (recommended and tested)

– HSP (not recommended for current use)



2 Possible Differentials :

– MJX P73420C From Model 7303-04 (recomended and tested, 32 DP 0.8 mm mod) Compatible WLTOYS 104 Motor Mount

– HSP60065 (NOT recomended ONLY if Motor Mount HSP, 1 mm mod… for advanced Users)



For more details :

https://myshopkit.fr/categorie-produit/parts/parts-rc/parts-wltoys-104-x-mjx-110



The tutorial :

https://docs.google.com/presentation/d/1nnaq9CoGe7HaGoy7GsP6zff4SQ1DwHdCIvUBH5P8L98/edit?usp=sharing

(same as JLB X HSP until I write it up; it shouldn’t be too complex normally because the assembly principle is the same)



Ultra-high performance 3D printable RC car, using standard WLTOYS parts.



The design is improved, and much more durable than the original.

The parts are stored in folders with logical names but it is best to read the build guide.

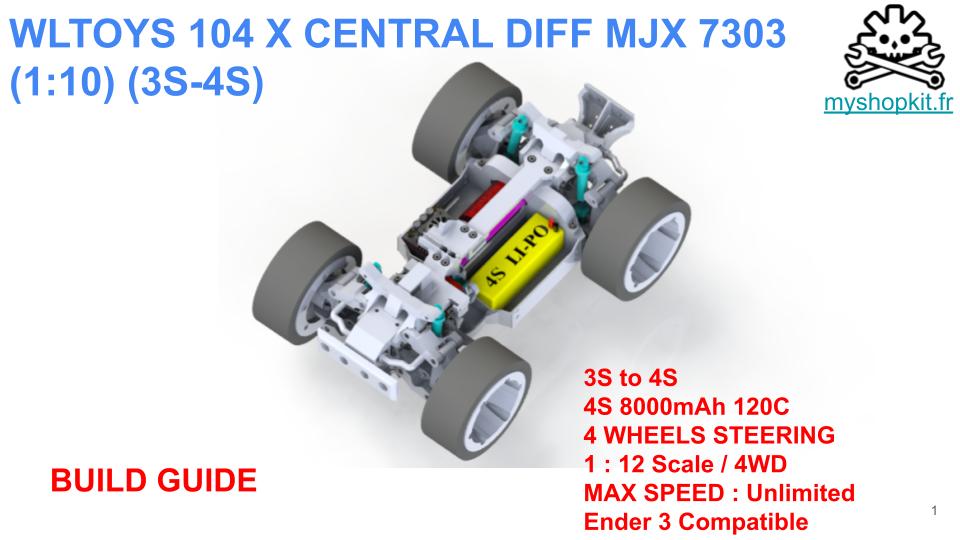

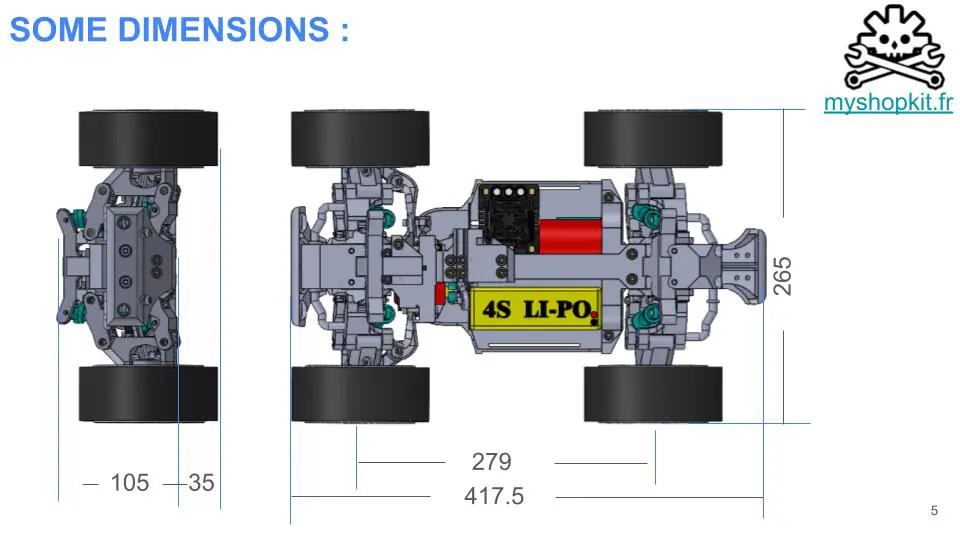

BUILD GUIDE :



https://docs.google.com/presentation/d/1xQednf_rth1foSpnl_zI8gsLzxE91GRotefnCwp8eBw/edit?usp=sharing

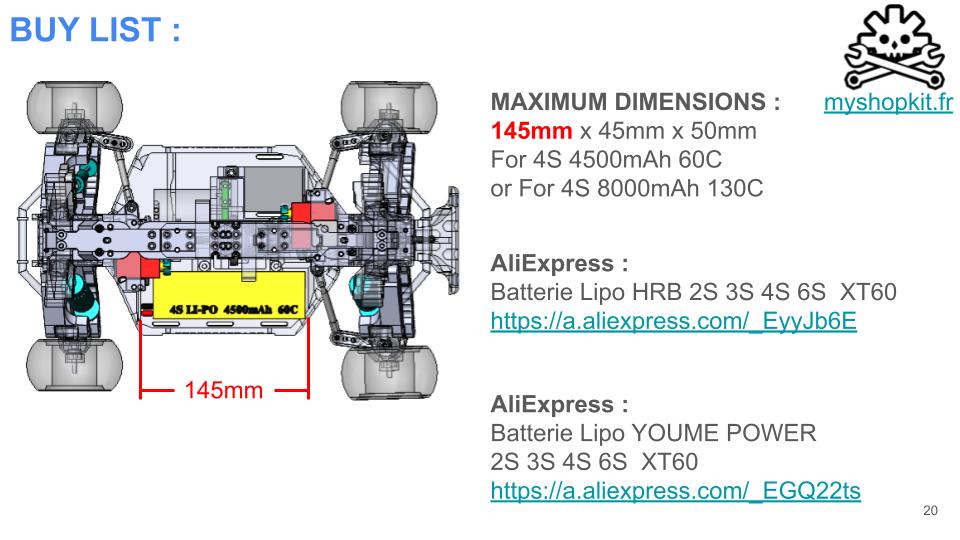

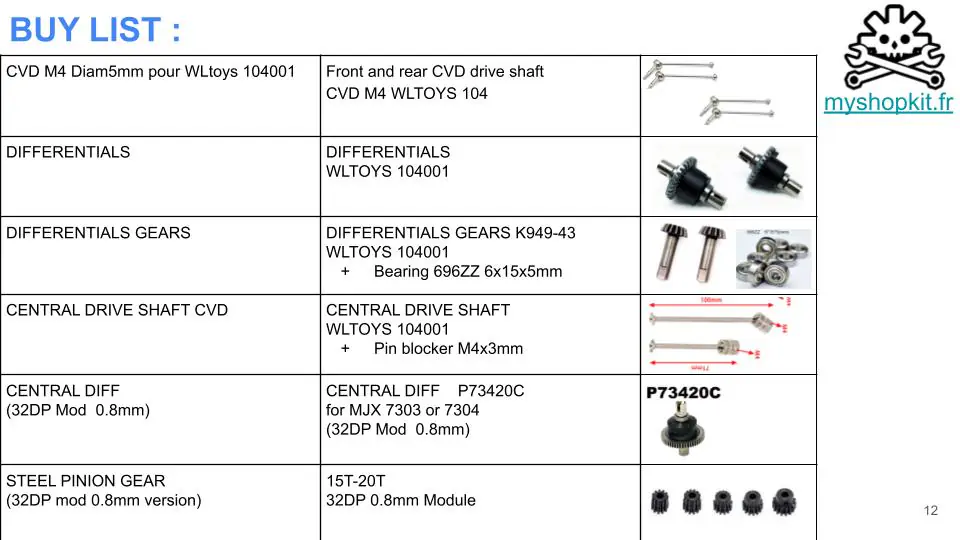

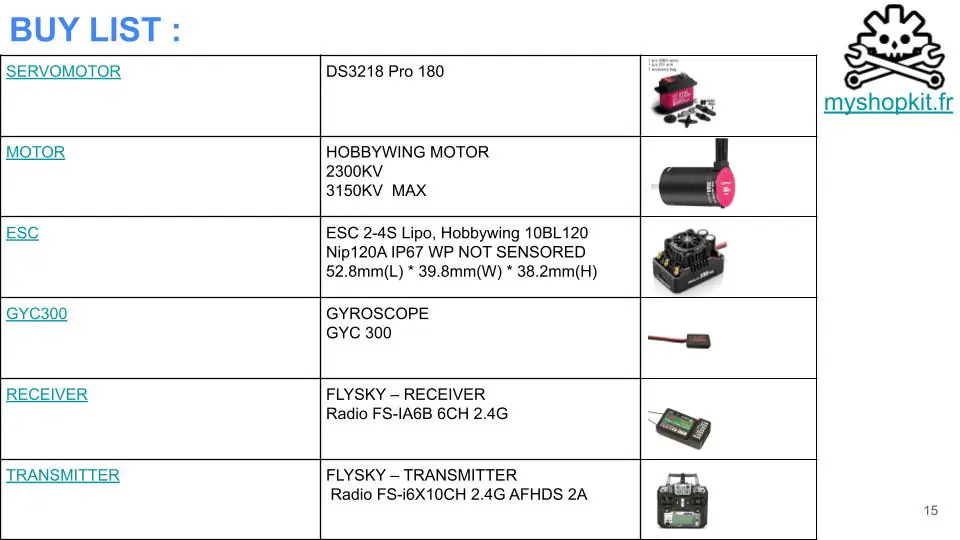

BUY LIST :



https://docs.google.com/spreadsheets/d/13KcXaT_AJslIPNiNc2_iUbgl0Dt_vjAusX34Y-McI78/edit?usp=sharing



BUILDING VIDEO :



https://www.youtube.com/watch?v=ltlX8YH-RXE



DRIVE TEST :



https://www.youtube.com/watch?v=eYnTohvDwP8



PREMIUM VERSION GOT :



– Bumpers

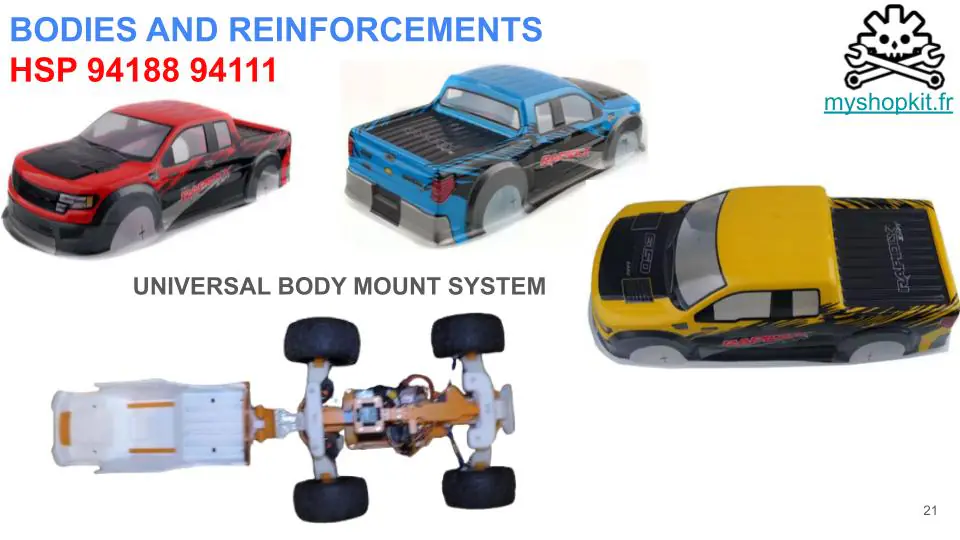

– New Body Mount

– Body Lower Protection Plate

– New Wheelie Bar

– All RIMS Sizes and offsets STL kit

– Motors Transmission Cover PLA

– FPV Protection

– More adjustment holes

– Fresh Update and Upgrade

– Thanks from the Creator



PREMIUM LINKS :



Official website :



https://myshopkit.fr/



FREE DEMO VERSION GOT :



– Slim Version of the Chassis

– Metal Motor Mount Capability

– No Transmission Cover PLA7

– No Bumpers

– RIMS  2.2p 12mm

– Standard ESC Place Capability

– ALL PARTS TO RUN A GOOD DEMO VERSION 😉

– New REVERSE ACKERMANN STEERING SYSTEM



LIST OF COMPATIBILITY (and retro compatibility)



Transmission gear always from :

– Wltoys 104

– Official or enhenced





CVD M4 5mm WLTOYS 104 (best choice) :

– Bearing : MR115ZZ AND MR115ZZ

FOR REAR DOGBONES WLTOYS104  (BETTER TO CHOOSE CVD BUT POSSIBLE)

– Bearing : MR115ZZ AND 6800ZZ



NEEDS :

– TPU           ( 500g )

Arms

Bumpers

– PLA Plus      (  1Kg )

All the Rest

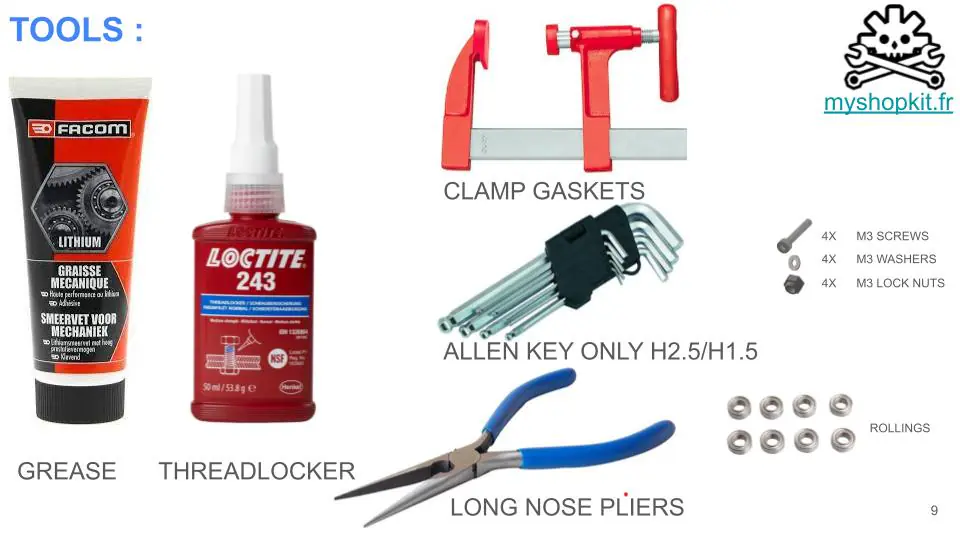

TOOLS :



– Hallen H2.5mm(for M3 Screws) / H1.5(for Pinion)

– Long Nose Pliers

– ThreadLocker

– Grease

– Clamp Gaskets

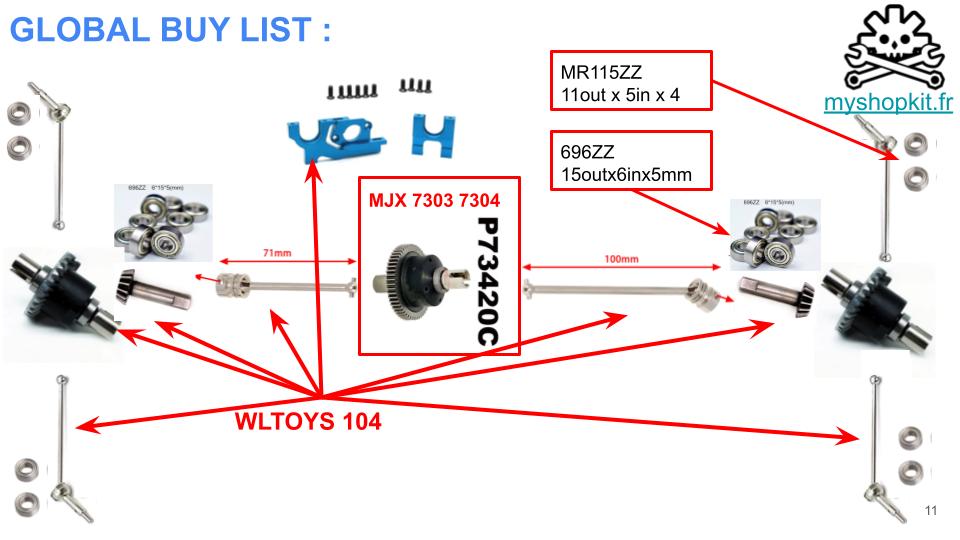

HARDWARE STORE :



BEARINGS For CVD M4 5mm from WLTOYS 104 :

5 x 11 x 4 MR115ZZ ABEC7 For CVD

10 x 19 x 5 6800ZZ ABEC7 For Rear Dogbones optional



Bearings

Washers M3           ( X 100)

Lock Nuts M3       ( X 100)

Screws :

– M3 x 14mm Hexa ( X 10) (STEERING)

– M3 x 20mm Hexa ( X 60) (ALL THE REST)

– M3 x 30mm Hexa ( X 10) (SHOCKS ABSORBERS / REVERSE ACKERMANN STEERING)

– M3 x 40mm Hexa ( X 20) (ARMS / REVERSE ACKERMANN STEERING)

– M4 x 40mm Hexa ( X 20) (ARMS IF KIT M4) (+Washers+Lock Nuts)



3D PRINT PARAMETERS :



– PRE ORIENTED MODELS

– PLA + : 40% Min – 95% MAX
– TPU : 85% Min – 95% MAX



TAGS :



– WLTOYS 104

– Ender 3 compatible

– PreOriented STL PARTS

– 3D Printed RC Car

– Reverse Ackermann Steering Compact System or direct drive steering

– Full Metal transmission

– Metal Steering Linkages Compatible

– Brushless Motor 2200KV MAX 3650 up to 4268  (3660 3150KV recommended)

– 3S -4S

– ESP Front Gyroscope

– Pinion and Gearing Module M0.8 (0.8 mm Diametral Pitch 32 DP for MJX) – No cogging issues

– Metal Differential mechanism Central axis Central drive shaft Motor-Gear

– Printed Beadlock Rims 2.2p or 3.2p

– Dogbones Hexa 12mmm

– Strong modulable design easy replace

– Standards parts

– 4 Arms = 1 Arm (Lowers and Uppers)

– 4WD -2WD -4×4 -2×4

– With or Without Anti roll Bar

– 1:10 Hardware

– No Glue Only M3 Screws Washers and LockNuts

– LED Light System Front and Rear

– Drift

– GoPro Mount

– Body Mount + upper protection

– Wheelie Bar

– Original dogbones and Wheel Nuts and upgrades



If you like it please buy it 😉



ENJOY



TAGS :



RC car, WLTOYS, 1:10, 4WD, Ender3, WLTOYS 104

MJX 7303 7304, Central Differential
